BE 35

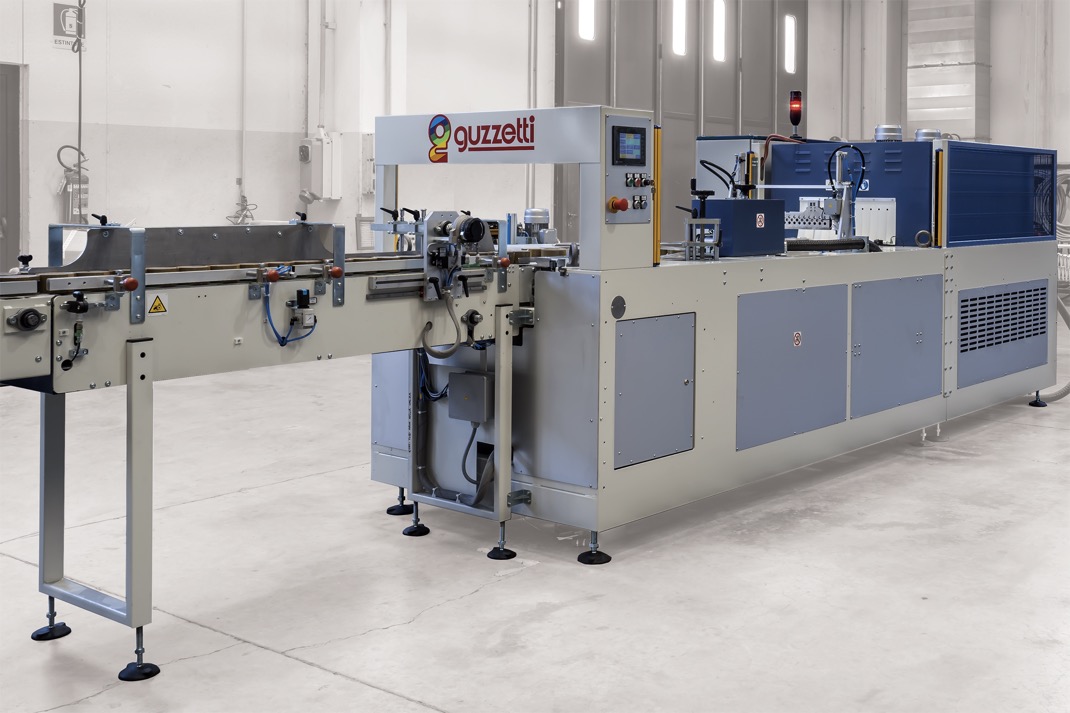

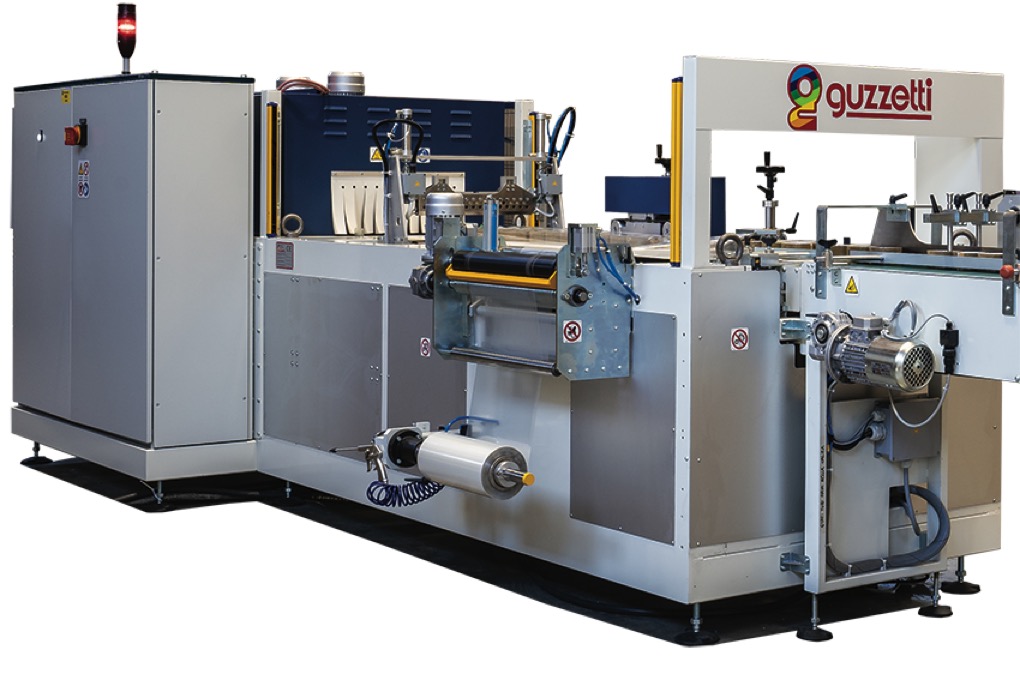

The BE 35 is an automatic wrapper for flat packaging with total closing of adhesive tape rolls with shrink wrapping film.

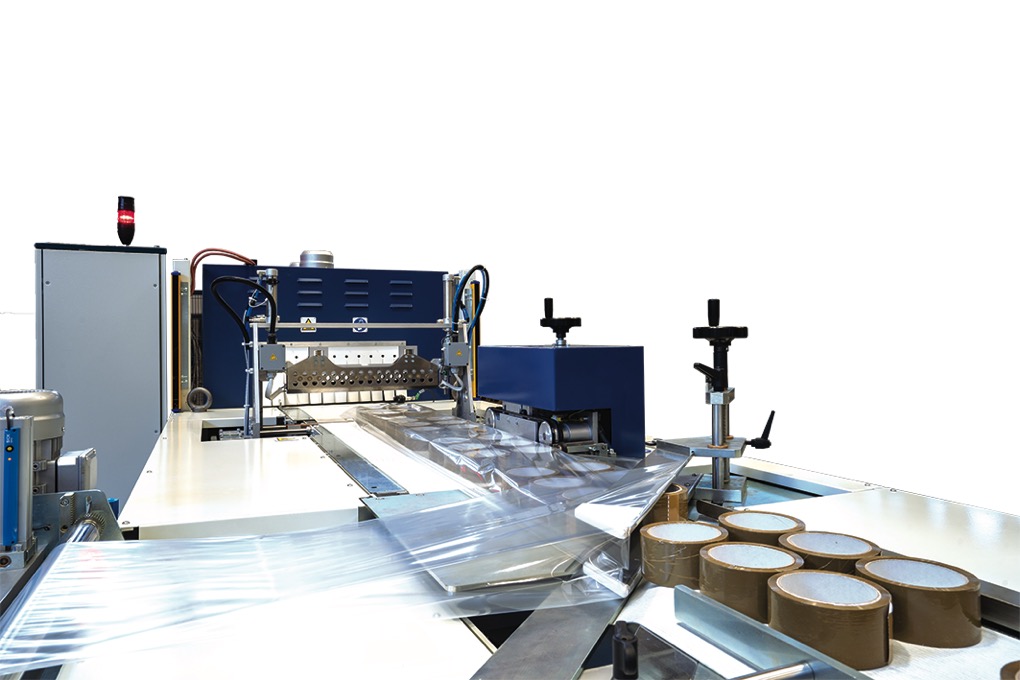

The package is wrapped with a single shrink film and welded on the side through a hot wire whose temperatore is adjustable on the control panel by the operator; while the trim recovery is operated by a sucking device. Then, it is welded transversally through a welding ceramic coated bar whose temperature is controlled by means of an electronic regulator and which operates in movement with the product.
Afterwards the packages enter inside the tunnel to operate the shrinking of the film. At the end of the process the packages are conveyed at the exit through a conveyor belt for eventual operations of labelling and cartoning.

描述

DESCRIPTION

  • Automatic feel unwinding
  • Max. micro-perforated film width, single folded: 450 mm
  • Max. film roll Ø: 450 mm
  • Type of film: polyolefine from 19 to 30 µ
  • Option for the use of flat micro-perforated film up to a maximum width of 900 mm – max. diameter 300 mm
  • Film jumbo rewound on 3” cores
  • In option system to perforate film
  • Electronic control of tunnel temperature
  • Film shrinkage by hot tunnel
  • Electronic control of tunnel temperature

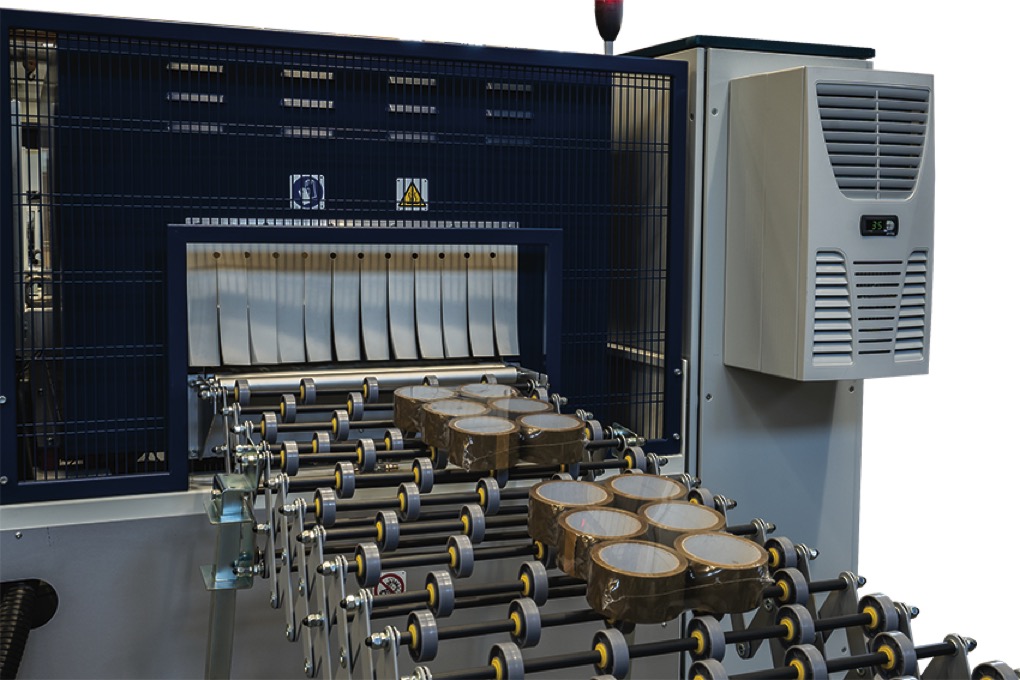

  • Product transportation in the shrink tunnel by teflonized rollers conveyor
  • Conveyor belt speed control
  • Slip torque conveyor for product feeding
  • Quick change of production with minimum adjustment
  • Minimum maintenance
  • Possibility of connection with an automatic slitter and automatic cartooning machine Mod. MS 3

TECHNICAL DATA

  • Pneumatic feeding: 6 Bar
  • Air consumption: 600 lt/min.

PRODUCTION DATA

  • Output: 35 packages/min.
  • Type of packaging: flat with three side welding

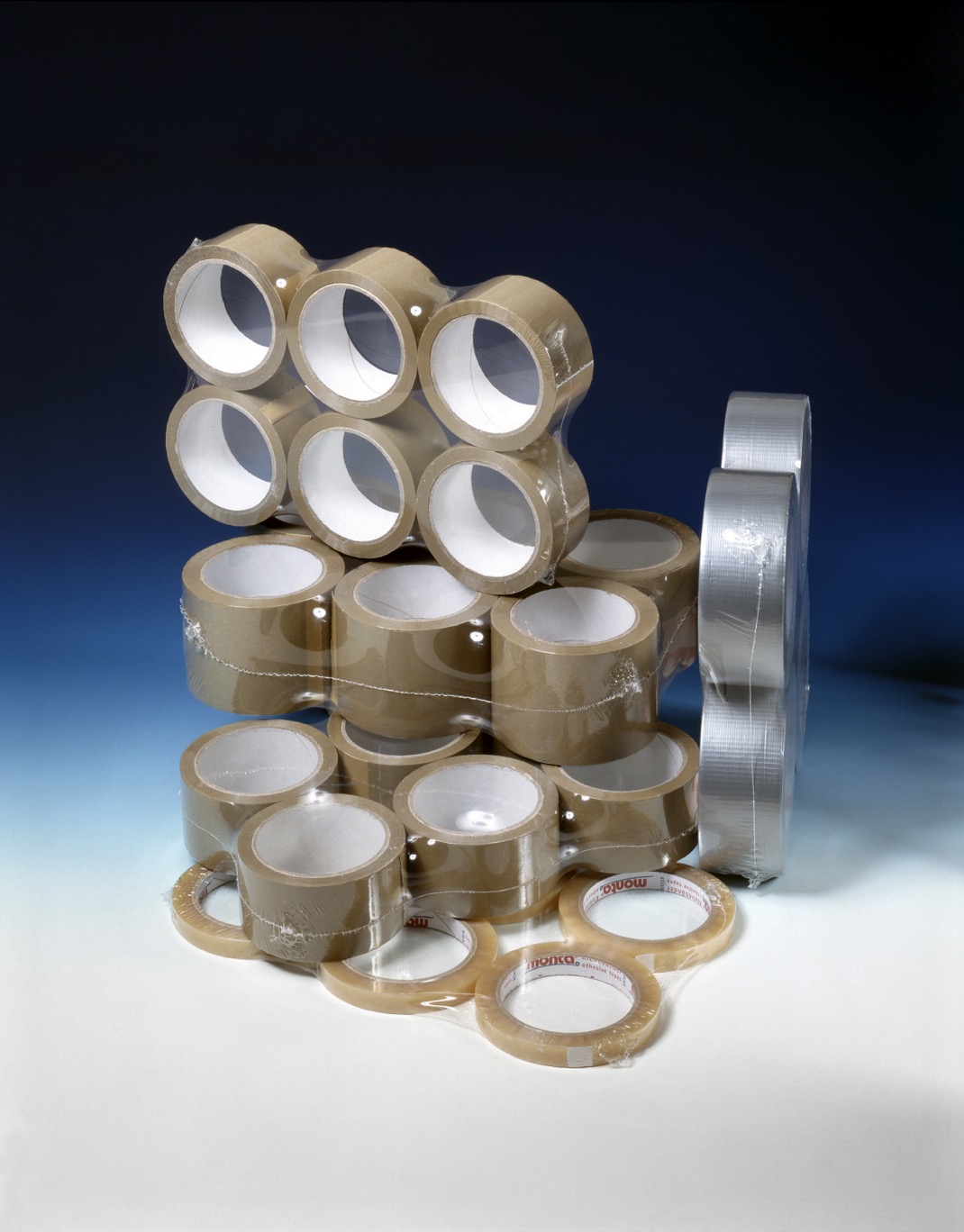

  • Packaging configuration: 2X2; 3×2; 4×2 (depending on diameter of rolls)

Technical data

  • Pneumatic feeding: 6 Bar
  • Air consumption: 600 lt/min.

Production data

  • Output: about 40 packages/min.
  • Type of packaging: flat with three side welding
  • Packaging configuration: 2X2; 3×2; 4×2 (depending on diameter of rolls)
