RS 3

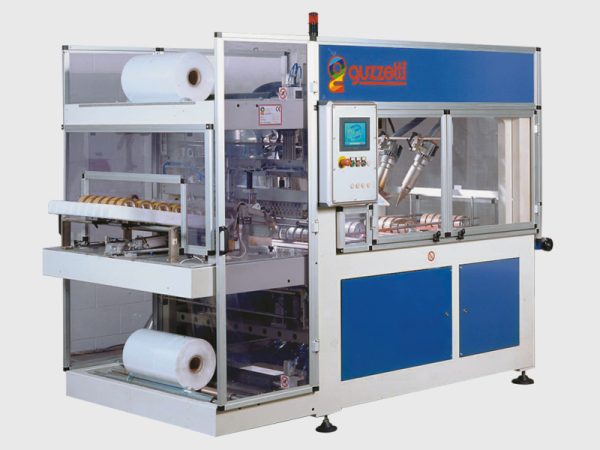

The automatic wrapper machine mod. RS 3 is conceived for the wrapping of adhesive tape rolls with thermo-shrinkable material in accordion or in tower configuration.
This type of packaging allows to combine more products together, put side by side avoiding that they get in contact and thus that they stick together.

The machine can be provided with automatic labelling system.

Description

DESCRIPTION

welding bar length: 900 mm
automatic film dereeling
max film width: 880 mm
max film roll Ø: 300 mm
type of film: PE or PVC from 25 to 50 μ
electronic control of welding temperature
product transportation by rollers conveyor
conveyor belt speed control
film shrinkage by Leister hot air blowers
quick change of production with minimum adjustment
minimum maintenance
possibility of integration in complete production lines with an automatic slitter and the automatic cartoning machine Mod. CS6

TECHNICAL DATA

Pneumatic feeding: 6 Bar
Air consumption: 100 lt/min
Type of packaging: accordion/tower

PRODUCTION DATA

Output: about 18 packages/min

Technical data

Pneumatic feeding: 6 Bar
Air consumption: 100 lt/min
Type of packaging: accordion/tower

Production data

Output: about 18 packages/min
