MSG 600 & 800

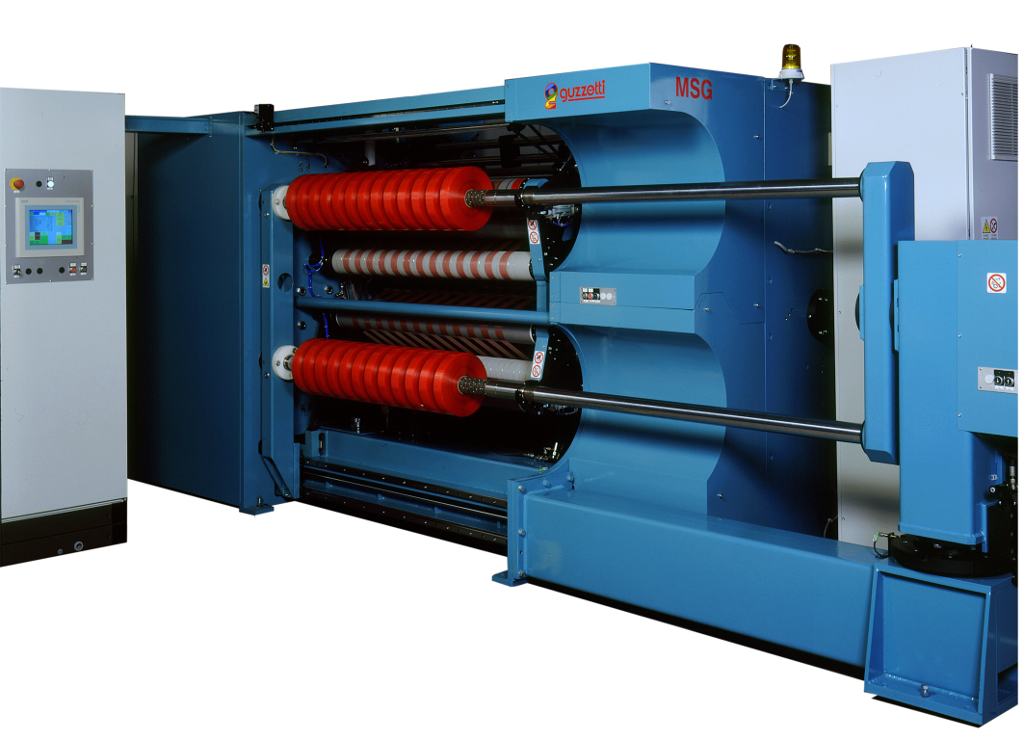

The MSG 600 is a special two-shafts rewinding slitter conceived for the cutting and rewinding of adhesive tape rolls reaching a maximum diameter of 600 mm (or 800mm – MSG 800 version). Special features may enrich this unit to make it more and more suitable for particular production needs.

Description

DESCRIPTION

  • Laser pointer indication for core positioning
  • Minimum gap cylinder
  • Possibility to be equipped with: razor blade; score or shear cutting
  • Automatic final tab application
  • Roll unloading on turning turret
  • Two shafts rewinding with arm for rolls collecting
  • Differential type shaft with Cam Lock clutches
  • Possibility of application of double side tape strip for work with material with liner or non adhesive
  • Different type of unwind station available: braked or driven, with expansion shaft or shaftless type

TECHNICAL DATA

  • Web width: 1000 ÷ 2000 mm
  • Cutting sizes: from 19 mm with CAM LOCK SHAFTS
  • Max rewinding diameter: 600 mm (or 800mm)

PRODUCTION DATA

  • Maximum cutting speed: 500 mt/min
    Cutting speed may depend of type of material to slit

Technical data

  • Web width: 1000 ÷ 2000 mm
  • Cutting sizes: from 19 mm with CAM LOCK SHAFTS
  • Max rewinding diameter: 600 mm (or 800mm)

Production data

  • Maximum cutting speed: 500 mt/min
    Cutting speed may depend of type of material to slit
