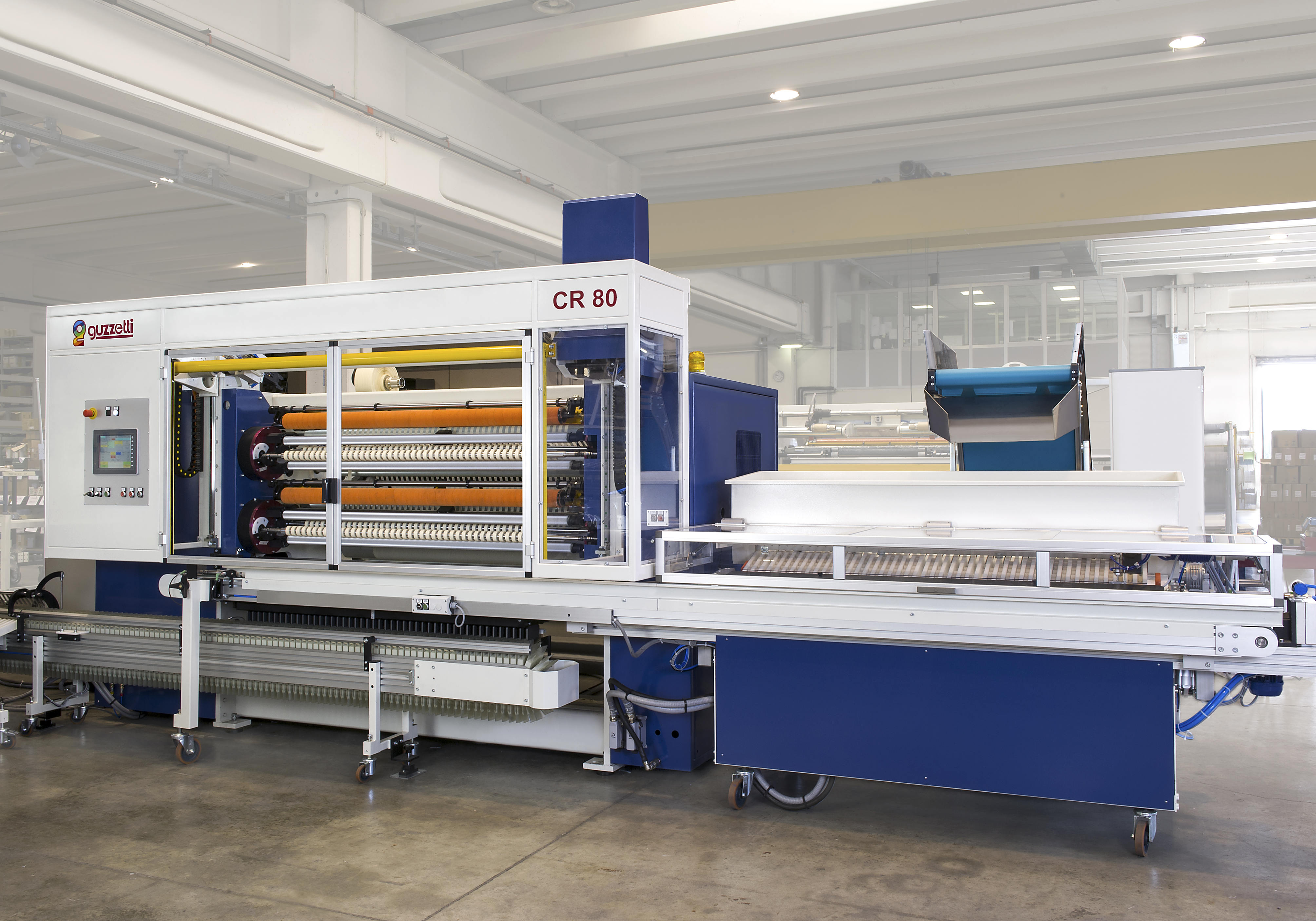

CR 80

The CR80 is the most compact and simplest slitter-rewinder of the Guzzetti production but yet a very flexible and reliable unit meant to be fit in a modern industrial environment, capable of a “round-the-clock” heavy duty.

The CR 80 is equipped with a system for the loading of the empty cores and unloading of the finished rolls without the need of the operator. The shafts with the finished rolls are discharged from the machine by means of a robotized system complete with no.2 mechanical arms. The same arms will take care to replace the shafts with the empy cores in the proper position inside the machine.

The slitter can be put in line with a packaging system.

描述

DESCRIPTION

  • High flexibility for the conversion of all types of pressure sensitive tapes
  • Possibility to rewind on 1” plastic or cardboard cores and 1” plastic spools
  • Fully automatic cycle with paper tab deposition, final cut, loading and unloading of shafts
  • Possibility to be equipped for razor blade, score or shear cutting
  • Dedicated or universal cutting tooling
  • One version to convert non adhesive materials by applying a double side tape strip
  • Different types of unwind stations: braked or driven, with expansion shaft or shaft-less type
  • Possibility to be equipped with Pack Rolls station for “fish eyes free” winding
  • Possibility to interface it for connection to packaging lines
  • Cutting size quick change in option

TECHNICAL DATA

  • Web width: 1000 ÷ 2000 mm
  • Cutting sizes: 12÷ 100 mm
  • Max. rewinding diameter: 80 mm

PRODUCTION DATA

  • Production cycle for 10 mt lenght rolls: 33 sec.

Technical data

  • Web width: 1000 ÷ 2000 mm
  • Cutting sizes: 12÷ 100 mm
  • Max. rewinding diameter: 80 mm

Production data

  • Production cycle for 10 mt lenght rolls: 33 sec.
