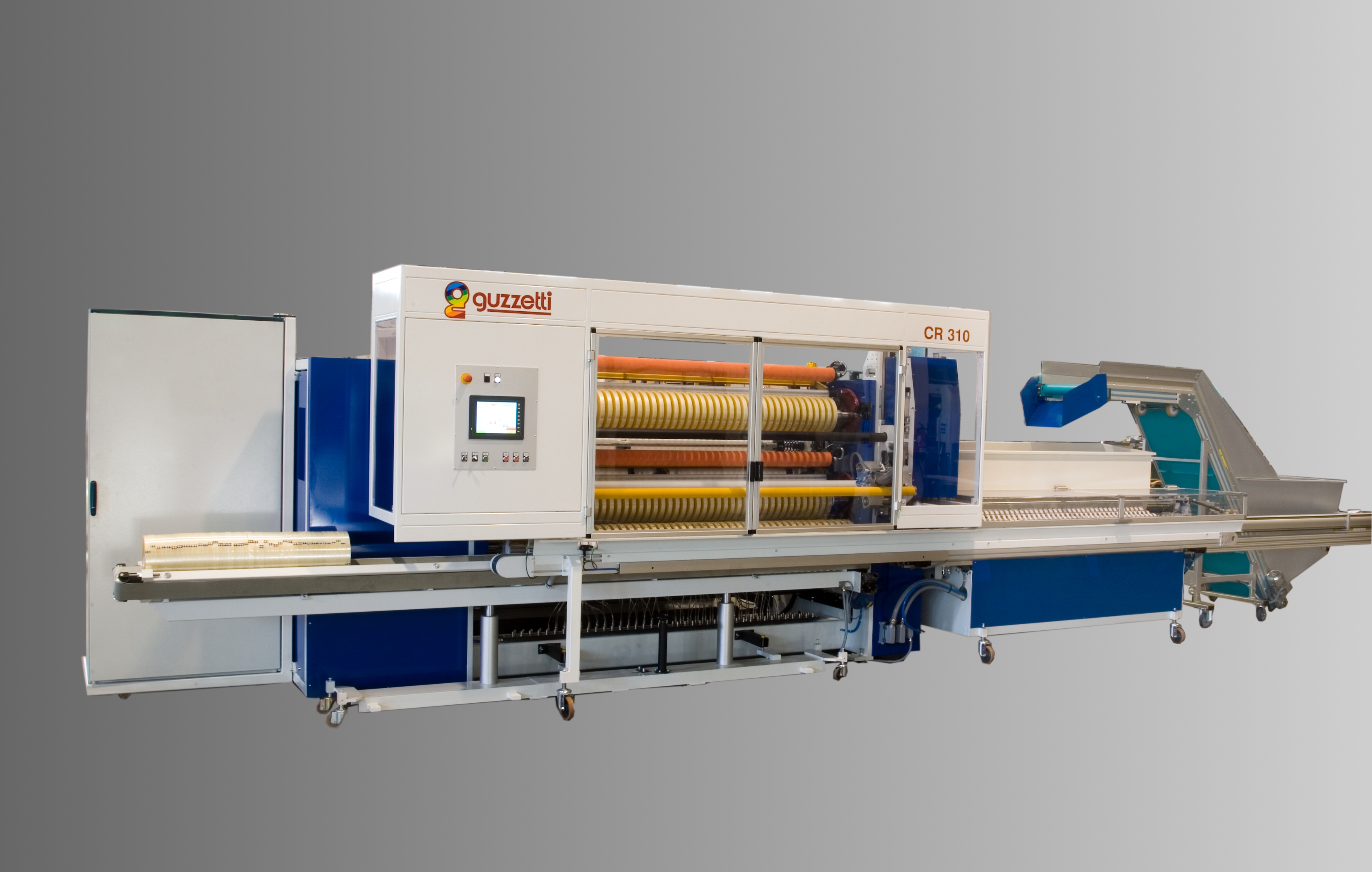

CR 310

It is a slitter of new design which combines the features of a fully automatic slitter keeping the flexibility of a semi automatic rewinding slitter.
The slitter is equipped with a system for the loading of the empty cores and unloading of the finished rolls without the need of the operator. The shafts with the finished rolls are discharged from the machine by means of a robotized system complete with 2 mechanical arms. The same arms will take care to replace the shafts with the empty cores in the proper position inside the machine. Finished rolls are normally discharged horizontally or vertically to be transported by means of modular belts to a packaging line.

描述

Description

High flexibility for the conversion of all types of pressure sensitive tapes
Fully automatic cycle with paper tab deposition, final cut, loading and unloading of shafts
Possibility to be equipped for razor blade, score or shear cutting
Dedicated or universal cutting tooling
One version to convert non adhesive materials by applying a double side tape strip
Different types of unwind stations: braked or driven, with expansion shaft or shaft-less type
Possibility to be equipped with Pack Rolls station for “fish eyes free” winding
Possibility to interface it for connection to packaging lines
Cutting size quick change in option

Technical data

Web width: 1000 ÷ 2000 mm
Cutting sizes: 12÷ 100 mm
Max. rewinding diameter: 310 mm

Production data

Cycle time for 50 mt: 34 sec.
Cycle time for 1000 mt rolls: 3,5 min

TECHNICAL DATA

Taglio utile: 1000 ÷ 2000 mm
Misure di taglio: 12÷ 100 mm
Diametro massimo riavvolgimento: 310 mm

PRODUCTION DATA

Ciclo per rotoli da 50 mt: 34 sec
