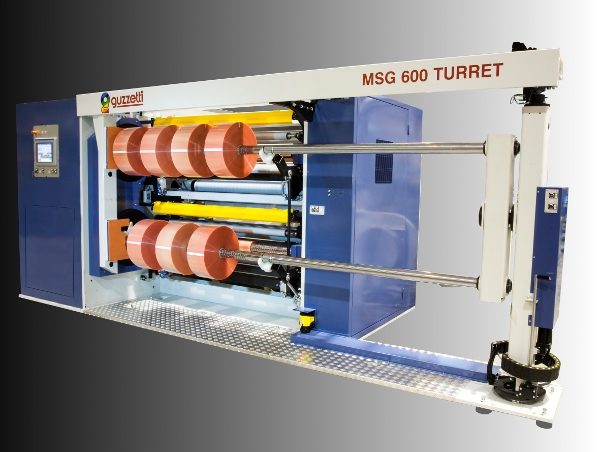

MSG 600 TURRET

The MSG 600 TURRET is a special slitter rewinder conceived for the cutting and rewinding on 3″ cardboard cores of adhesive or non-adhesive tape rolls reaching a maximum diameter of 600 mm. Special features may enrich this unit to make it more and more suitable for particular production needs.

The machine is designed and dimensioned to guarantee the best match between high speed production capacity and top level reliability requiring a very little maintenance in terms of time and costs.

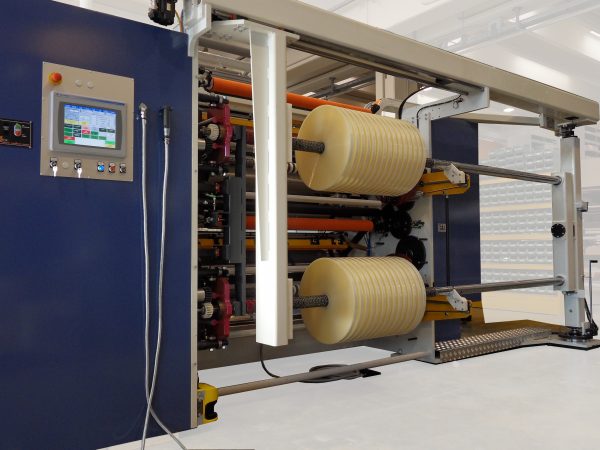

The machine uses two rewinding shafts station, turret type to run automatically in a continuous fashion. The rewinding shafts are maintained cantilevered for the operation of loading and unloading.

Description

  • Laser pointer indication for core positioning
  • Minimum gap cylinder
  • Possibility to be equipped with: razor blade; score or shear cutting
  • Automatic final tab application
  • Roll unloading on turning turret
  • Differential type shaft with Cam Lock clutches
  • Possibility of application of double side tape strip for work with material with liner or non adhesive
  • Different type of unwind station available: braked or driven, with expansion shaft or shaftless type

Technical data

  • Web width: 1000 ÷ 2000 mm
  • Cutting sizes: from 19 mm with CAM LOCK SHAFTS
  • Max rewinding diameter: 600 mm

Production data

  • Maximum cutting speed: 500 mt/min
    Cutting speed may depend of type of material to slit
