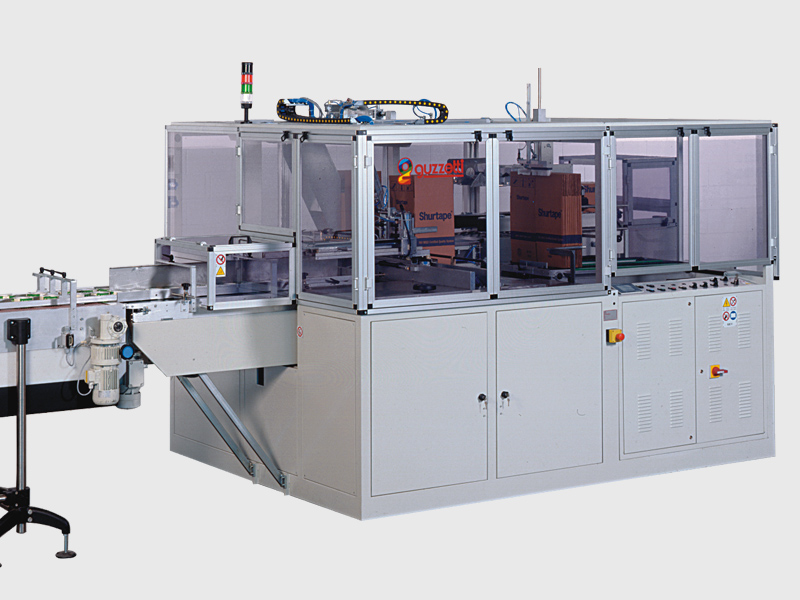

MS 30

The MS 30 cartoning machine is equipped for forming and filling carton boxes with adhesive tape rolls in multi layers. The carton boxes (American type), closed and stacked in the storage area, are collected by a mechanical arm and formed. As soon as the boxes are filled, the machine seals them.
The base unit is equipped with dedicated formats in accordance with the box dimensions to be employed.

Description

DESCRIPTION

  • Two machine versions according to production needs: MS 30 e MS 30 S
  • Adjustable carton magazine
  • Box opening and moved by vacuum
  • Automatic box filling station by interchangeable groups
  • Quick change of production with minimum adjustment
  • Box closing unit by means of self-adhesive taping group
  • Minimum maintenance
  • Possibility of connection with one Guzzetti wrapping machine for flat packaging or single wrapping.

TECHNICAL DATA

  • Pneumatic feeding: 6 Bar
  • Air consumption: 300 lt/min.
  • Carton magazine capacity: 120

PRODUCTION DATA

  • MS 30 output: max. 24 layers or max. 4 cartons/min
  • MS 30 S output: max. 44 layers or max. 6 cartons/min

Dati tecnici

  • Pneumatic feeding: 6 Bar
  • Air consumption: 300 lt/min.
  • Carton magazine capacity: 120

Dati di produzione

  • Pneumatic feeding: 6 Bar
  • Air consumption: 300 lt/min.
  • Carton magazine capacity: 120
