GTD 7

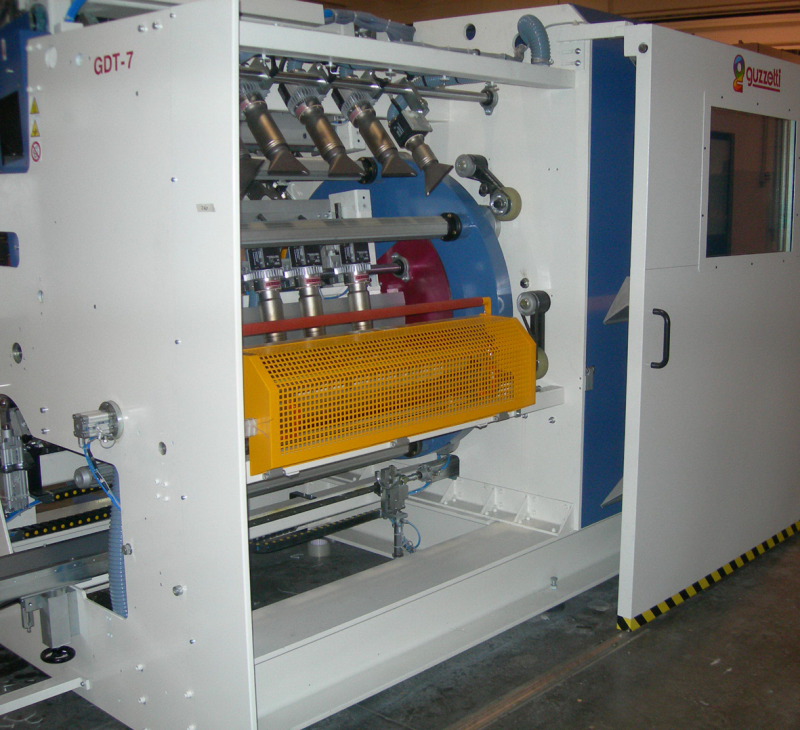

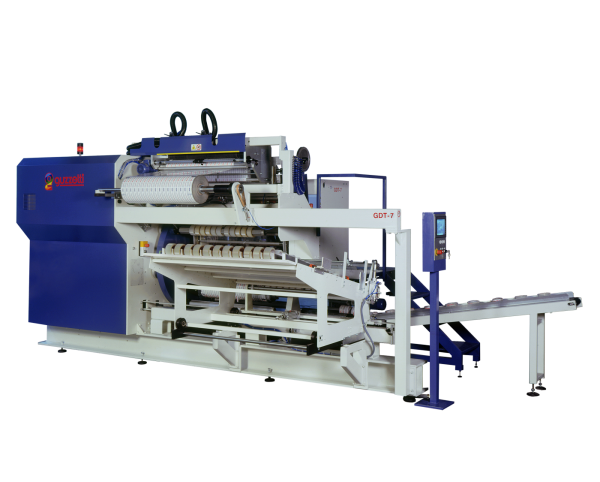

The GDT 7 is an innovative shrink wrapping machine equipped for the single packaging of adhesive tape rolls on 3” core, using thermo shrinkable film (printed or clear PVC and PE).
The feeding can be in automatic way connected to a fully automatic slitter.
The GDT 7 is also capable of packaging the rolls in tower and accordion composition.

The machine can be provided with automatic labelling system.

Description

DESCRIPTION

  • welding bar length: 950mm
  • max film width: 900 mm
  • max film roll Ø: 300 mm
  • type of film: PVC from 25 to 30 μ (clear or printed) – PE from 25 to 40 µ
  • automatic film dereeling with control of step for the use of printed film
  • Interchangeable formats for different product feeding
  • Patented Automatic positioning system to space the rolls according to their diameter ( in option)
  • electronic control of welding temperature
  • high stability product transportation by special shaft holding product to wrap
  • film shrinkage by Leister hot air blowers
  • operations with one film reel

TECHNICAL DATA

  • Type of packaging: single rolls/tower/accordeon
  • Max diameter of rolls: 150 mm
  • Width of rolls: 12 – 100 mm

PRODUCTION DATA

  • Output: up to 15 cycles/min
  • single roll max. 255 rolls/min
  • tower or accordeon max. 360 rolls/min

Technical data

  • Type of packaging: single rolls/tower/accordeon
  • Max diameter of rolls: 150 mm
  • Width of rolls: 12 – 100 mm

Production data

  • Output: up to 15 cycles/min
  • single roll max. 255 rolls/min
  • tower or accordeon max. 360 rolls/min
