GTD 4

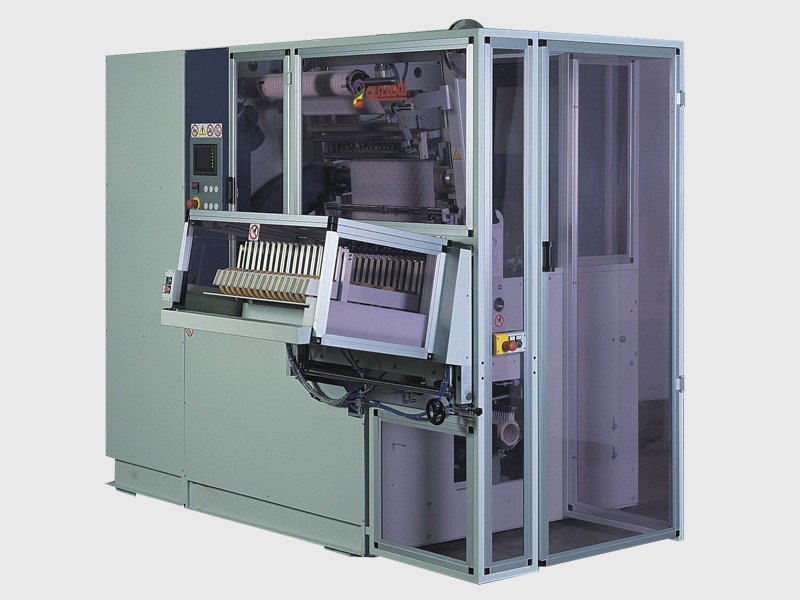

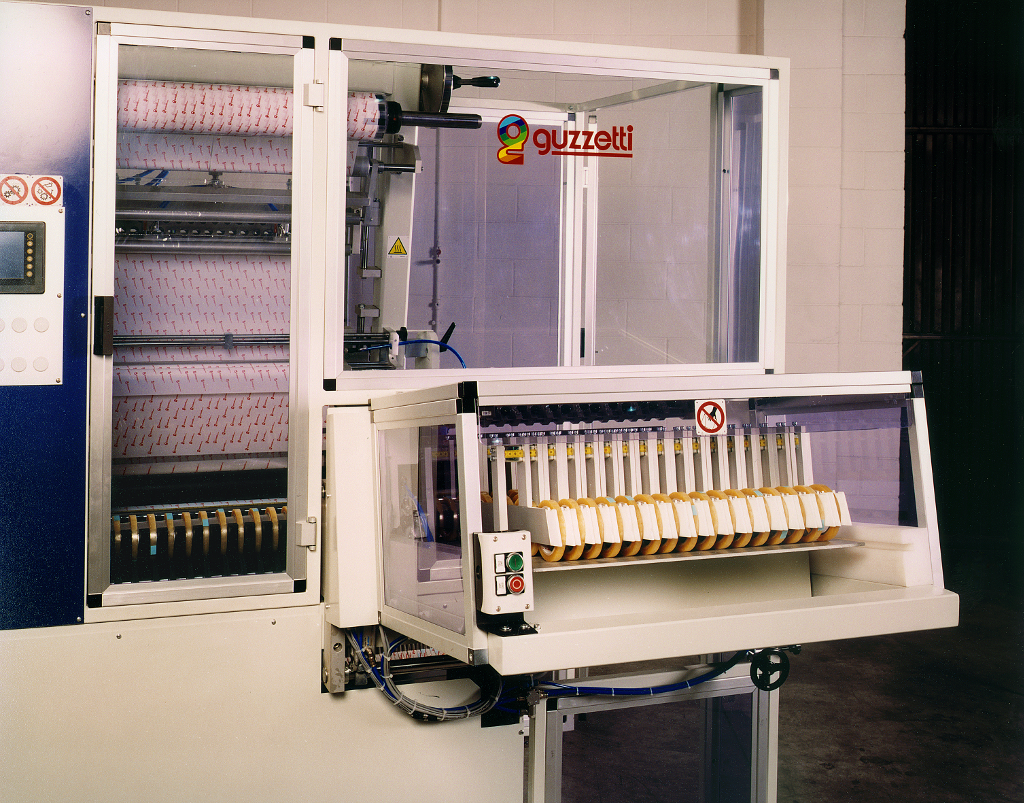

The GDT 4 is an automatic machine of new design for the packaging of rolls rewound on 3” core in thermo shrinkable film (printed or clear PVC and PE), with manual feeding. If needed it’s possible, by means of additional formats, to wrap also on 2”, 1,5” and 1” cores.
The main features of the GDT 4 are: simplicity, space saving and reliability. In fact this machine is able to pack rolls having a max. diam. of 150 mm in single composition, as well as in accordion and tower composition.

The machine can be provided with automatic labelling system.

Description

DESCRIPTION

  • welding bar length: 650mm
  • automatic film dereeling
  • max film width: 625 mm
  • max film roll Ø: 300 mm
  • type of film: PVC from 25 to 30 μ (clear or printed) – PE from 25 to 40 µ
  • Production changing with universal set-up for product loading adjustable in accordance with width and diameter of rolls
  • electronic control of welding temperature

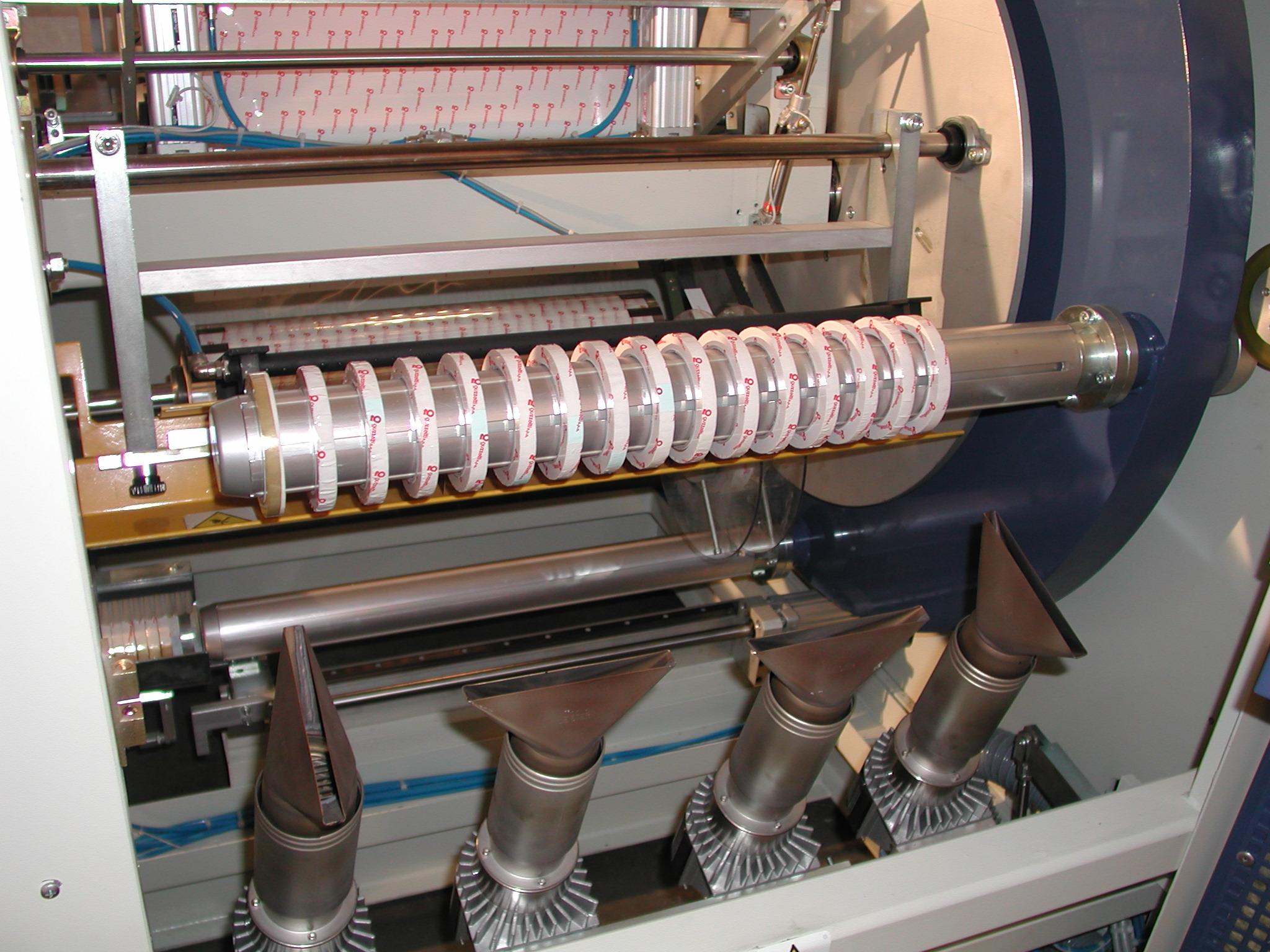

  • high stability product transportation by special shaft holding product to wrap
  • film shrinkage by Leister hot air blowers
  • operations with one film reel
  • minimum maintenance

TECHNICAL DATA

  • Pneumatic feeding: 6 Bar
  • Air consumption: 10,8 m³/h.
  • Type of packaging: single rolls, accordion, tower

PRODUCTION DATA

  • Output: 4 ÷ 6 cycles/min – max. 36 rolls/min (in accordance with rolls size)

Technical data

  • Pneumatic feeding: 6 Bar
  • Air consumption: 10,8 m³/h.
  • Type of packaging: single rolls, accordion, tower

Production data

  • Output: 4 ÷ 6 cycles/min – max. 36 rolls/min (in accordance with rolls size)
